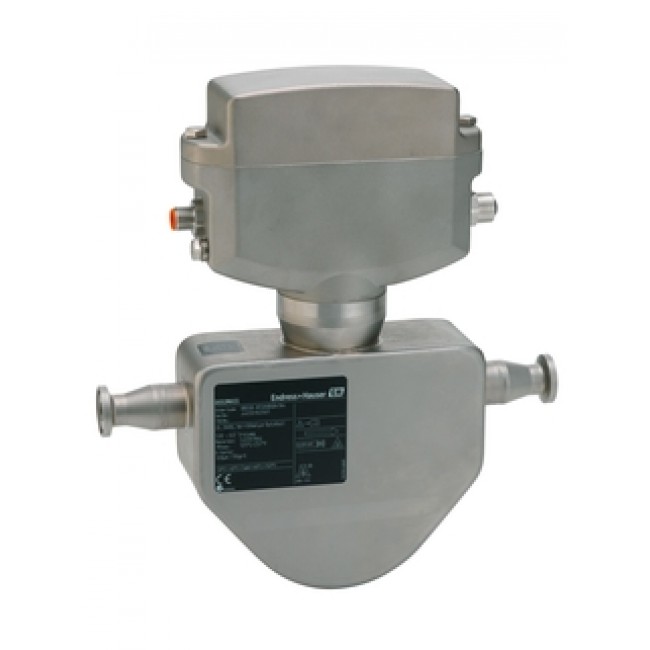

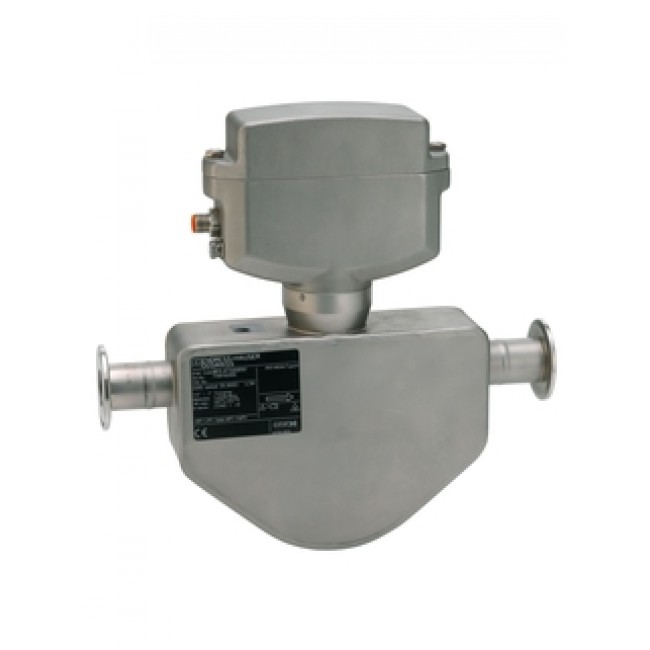

Дозиметричний витратомір Коріоліса, Endress+Hauser

Попереднє замовлення

Доступне передзамовлення

Виробник: Endress+Hauser

Дивитись всі моделі

Без ПДВ: 0.00UAH

Передзамовлення

Опис

The compact sensor with an ultra-compact transmitter

Field of application

Dosimass is specially designed for filling and bottling applications. It measures volume and mass flow directly with temperature and density compensation to ensure maximum repeatability. Designed for applications where space is a premium, Dosimass will be the preferred choice for system integrators, skid builders and equipment manufacturer.

Measuring principle operates independently of physical fluid properties such as viscosity or density
Measurement of liquids with the most diverse properties in the continuous process control & batching applications.
Nominal diameter: DN 8 to 25 (3/8 to 1")
Various hygienic process connections, 3A conform
CIP, SIP cleanable sensor
Robust, ultra-compact transmitter housing
Pulse/frequency/switch output, Modbus RS485
Excellent and easy cleanable transmitter

Benefits

High process safety – high measuring accuracy for different media in shortest filling time
Fewer process measuring points – multivariable measurement (flow, density, temperature)
Space-saving installation – no in/outlet run needs
Versatile and time-saving wiring – plug connector
Fast commissioning – pre-configured devices
Automatic recovery of data for servicing

Specifications

Measuring principle	Coriolis
Product headline	The compact sensor with an ultra-compact transmitter. Measurement of liquids with the most diverse properties in continuous process control & batching applications.
Sensor features	High process safety – high measuring accuracy for different media in shortest filling time. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Nominal diameter: DN 8 to 25 (³⁄₈ to 1"). Various hygienic process connections, 3-A conform. CIP, SIP cleanable sensor.
Transmitter features	Versatile and time-saving wiring – plug connector. Fast commissioning – pre-configured devices. Automatic recovery of data for servicing. Robust, ultra‐compact transmitter housing. Pulse/frequency/switch output, Modbus RS485. Excellent and easily cleanable transmitter.
Nominal diameter range	DN 8 to 25 (³⁄₈ to 1")
Wetted materials	Measuring tube: 1.4539 (904L) Connection: 1.4404 (316/316L)
Measured variables	Mass flow, density, temperature, volume flow
Max. measurement error	Mass flow (liquid): ±0.15 % Density (liquid): ±0.0005 g/cm³
Measuring range	0 to 18 000 kg/h (0 to 660 lb/min)
Max. process pressure	PN 40
Medium temperature range	–40 to +125 °C (–40 to +257 °F) 150 °C allowed for 1 h
Ambient temperature range	–20 to +60 °C (–4 to +140 °F)
Sensor housing material	1.4301 (304), corrosion resistant
Transmitter housing material	1.4308 (304)
Degree of protection	IP67, type 4X enclosure
Display/Operation	No local operation Configuration via operating tools possible
Outputs	Pulse/frequency/switch output (passive)
Inputs	None
Digital communication	Modbus RS485
Power supply	DC 20 to 30 V
Hazardous area approvals	ATEX, IECEx, cCSAus
Other approvals and certificates	3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR 3-A
Product safety	CE
