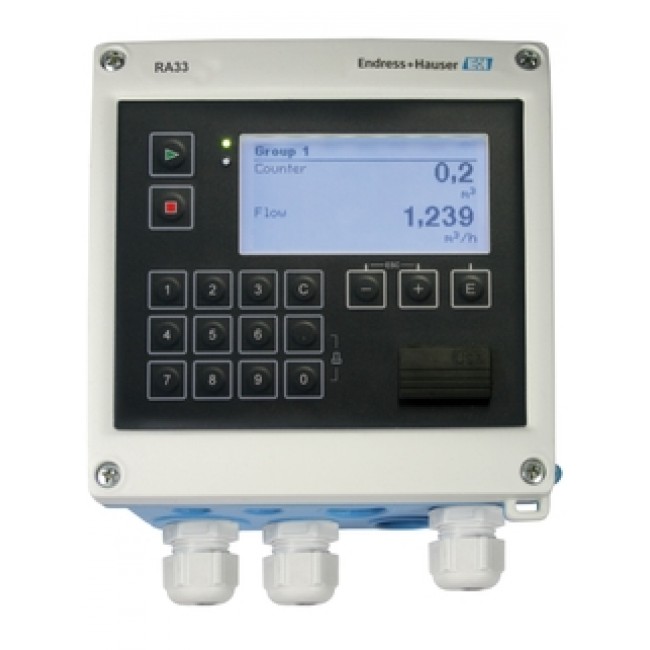

The Batch Controller RA33 is designed to record flow and control output signals for valves and pumps to ensure the exact dosing of predefined batch quantities. The measured volume can be corrected with the temperature/density compensation function. The filling process can be optimized with an automatic or fixed after-run correction. Mineral oils can be corrected according to the ASTM D1250-04 standard.
Food industry
Chemical industry
Pharmaceutical industry
Oil & gas industry
Benefits
Fixed and automatic after-run correction for constant, extremely accurate results
Higher quality through fast and exact dosing
Optional volume correction for mineral oils as per ASTM D1250-04
Detailed logging of protocols (preset counter, volume counter, batch name and number) as well as error messages and changes of operating parameters
Standard models are suitable for connecting and supplying all common flow transmitters, temperature sensors and density sensors
Remote control option to start and abort batch runs
Daily, monthly and annual statistics on the batch run size and quantity
Specifications
Measuring principle
Application manager
Measuring principle
Batch controller
Function
Filling & dosing
Calculations
Volume calculation
Number of applications
1
Calculation standards
ASTM D1250-04
Communication
RS232 USB Ethernet Modbus TCP Modbus RTU
Power supply
Not defined
Loop power supply
Low voltage power supply: 100 bis 230 V AC (-15% / +10%) Small voltage power supply: 24 V DC (-50% / +75%) 24 V AC (±50%)
Protection class
IP65
Input
1 x analogue (I) / pulse (for flow) 1 x RTD (for temperature) 1 x analogue (I) (for density) Loop power supply 24V DC (+/-16%)
Output
1 x analogue (I) / pulse (active) 2 x open collector
Dimensions (WxHxD)
144 x 144 x 103.1 mm (5.67" x 5.67" x 4.06")
Operation
3 operation buttons and 14 function buttons for batch operation or via FieldCare Read out of historical / logged data via Field Data Manager software (SQL database and visualization interface) Selectable language
Display
160 x 80 Dot-Matrix LCD with white backlit Colour change in case of alarm event Active display area 70 x 34 mm
Software functions
Volume calculation 1 or 2 stage operation Manual and automatic overrun correction Volume correction factor (VCF) according ASTM D1250-04 for generalized crude oils, refined products and lubricating oils
Certificates
CE CSA GP NTEP (USA)
