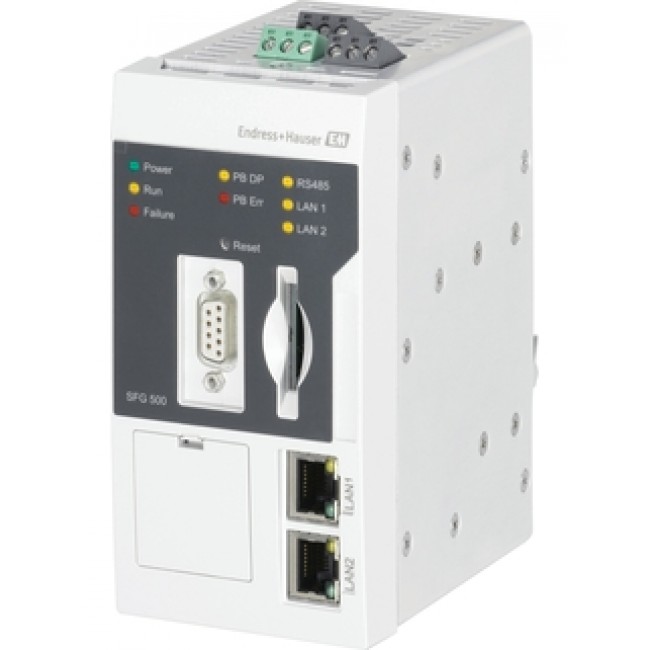

Шлюз Fieldgate SFG500Intelligent Ethernet/PROFIBUS шлюз, Endress+Hauser

Field of application

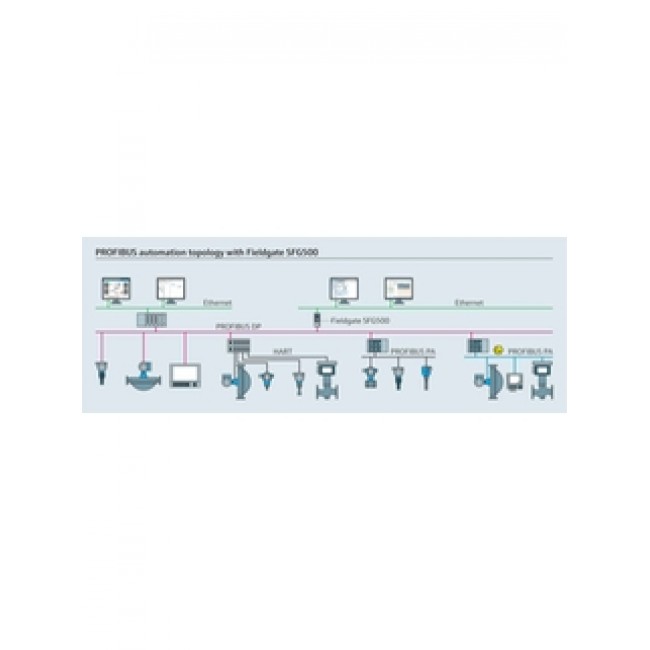

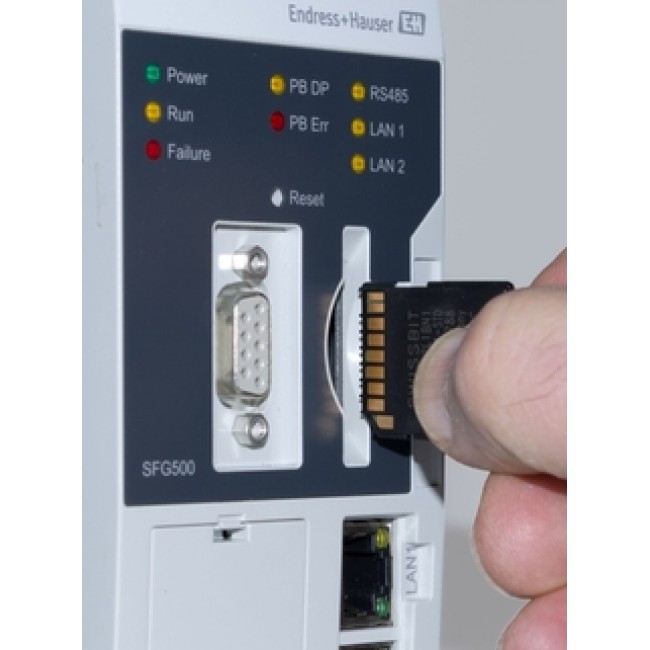

Fieldgate SFG500 is a system component that provides an independent access route to a PROFIBUS network. It may be used in a variety of applications that are supported by specific operating modes. Fieldgate SFG500 may be used in a variety of applications that are supported by specific operating modes. The operating modes are determined by the use of an optional memory card (Fieldgate Module SFM500).

Without a memory card, Fieldgate SFG500 operates as a plant access point. In this case, it acts as an Ethernet gateway with adaptive PROFIBUS Master Class 2 capabilities to support FDT-based plant asset management host applications, e.g. FieldCare.

Benefits

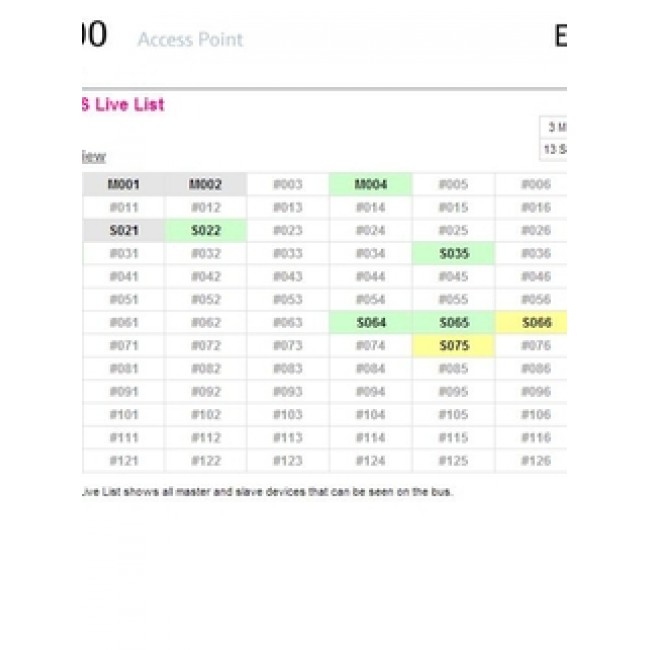

• PROFIBUS listener and Master Class 2: automatically integrates itself into a PROFIBUS network and finds all connected devices

• HART support via PROFIBUS: HART device support and device diagnostics

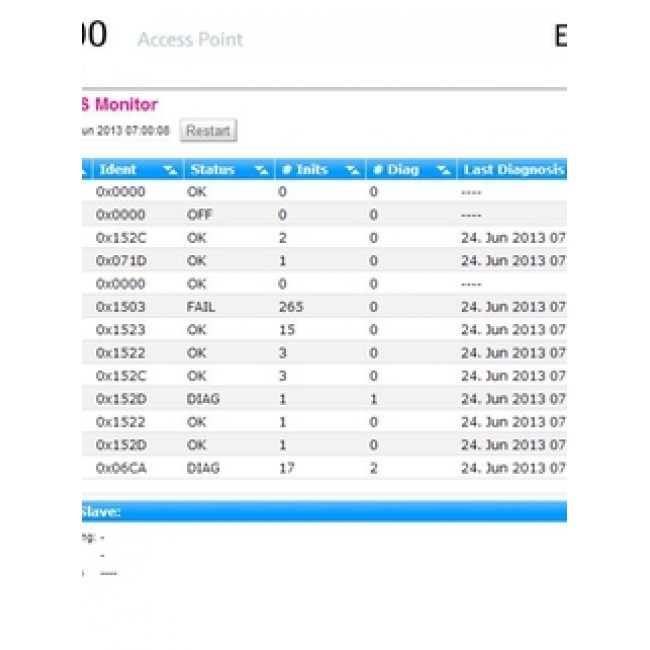

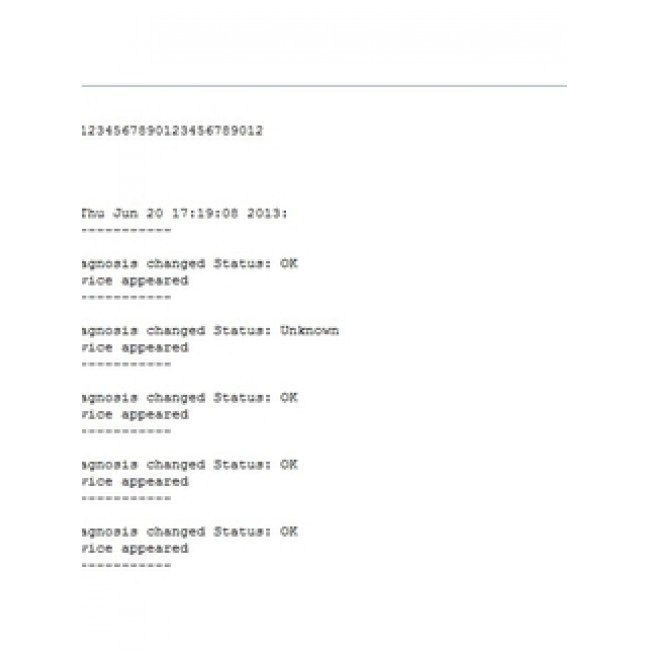

• PROFIBUS observer: monitors network traffic and device diagnostics

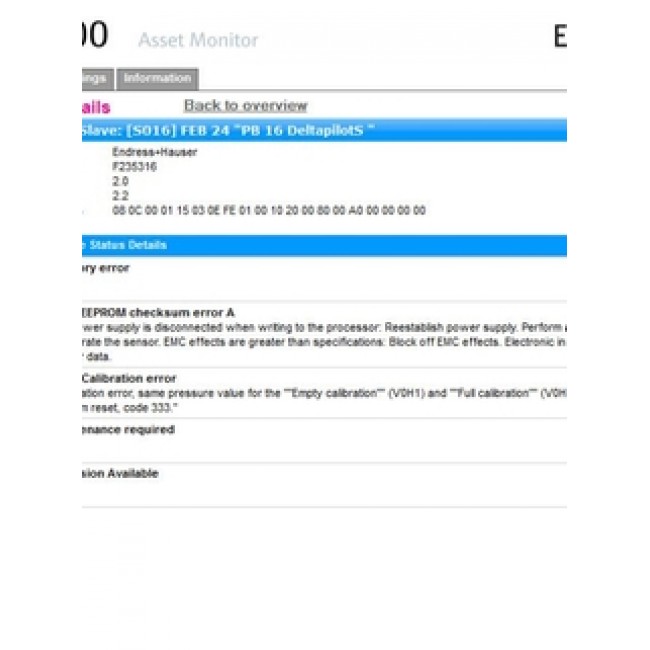

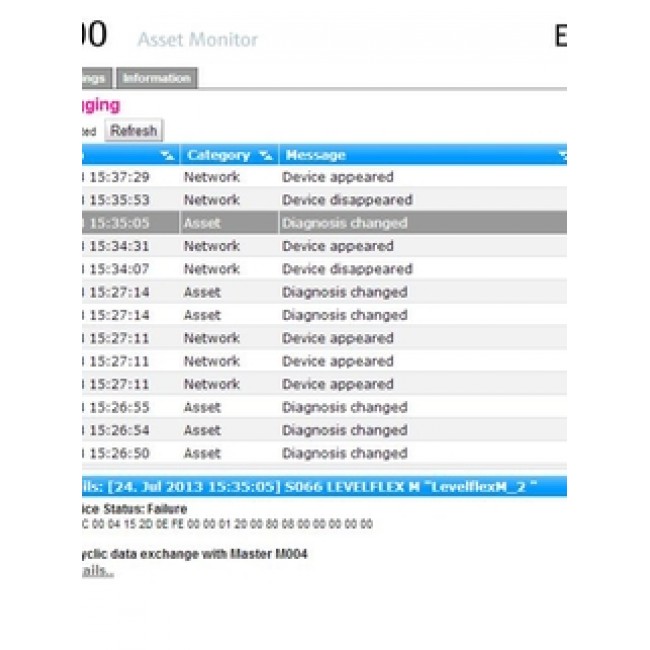

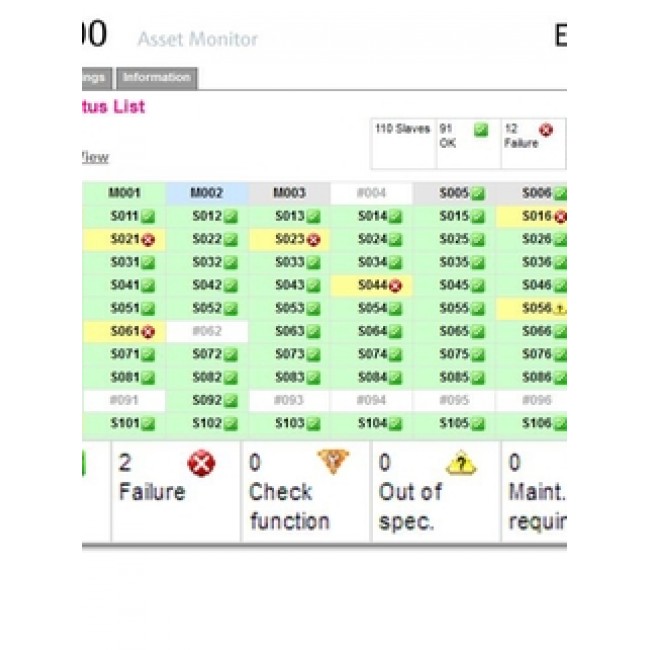

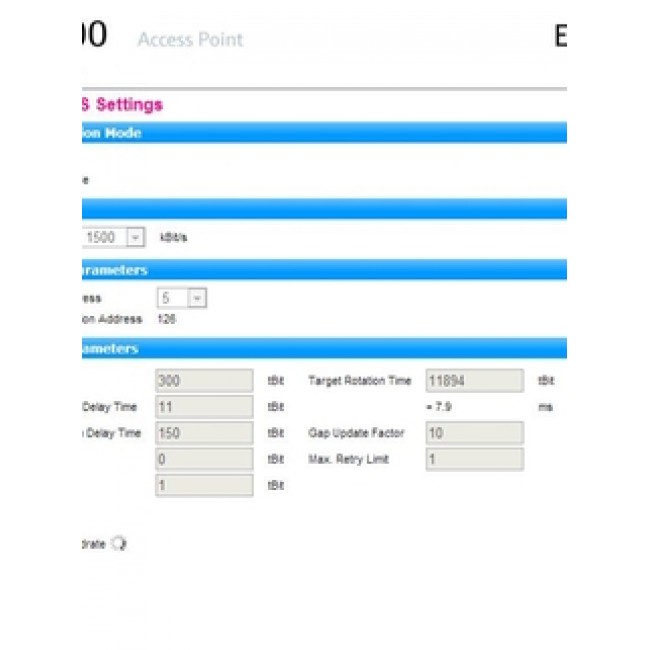

• Web Server: provides a clear presentation of network and diagnosis information via Web Browser or FDT/DTM frame application

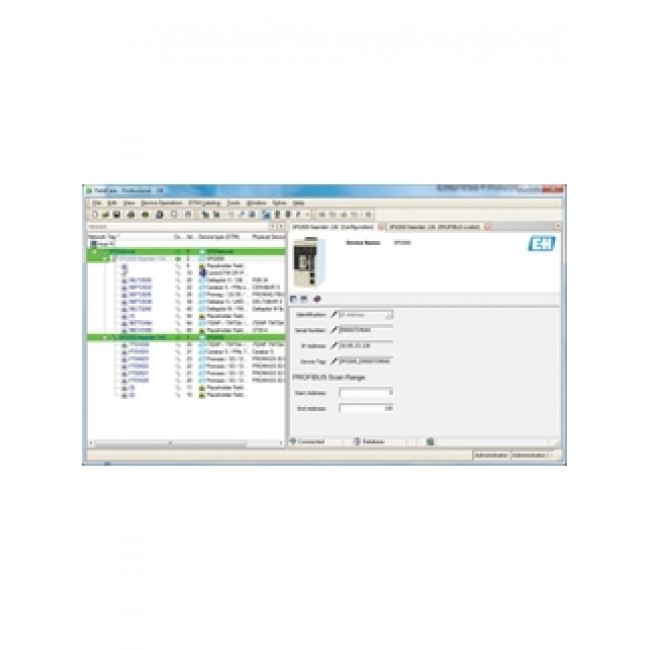

• SFGNetwork DTM: finds all SFG500 Fieldgates present in an Ethernet domain and displays their PROFIBUS connections

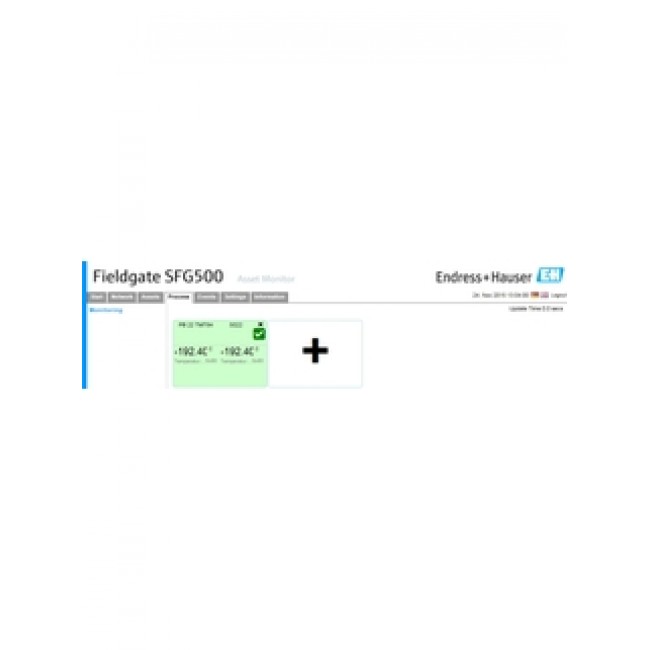

• Fieldgate Module SFM500: activates functions for process value and diagnostic display
