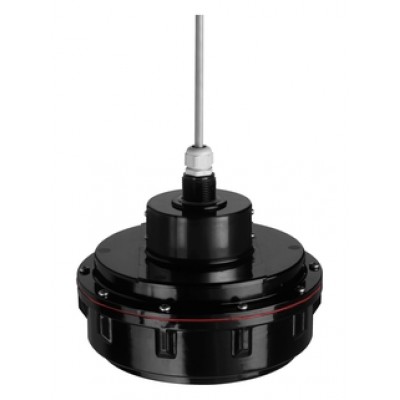

Ультразвуковий рівнемір Prosonic FDU95, Endress+Hauser

Ультразвуковий рівнемір Prosonic FDU95, Endress+Hauser
Попереднє замовлення
Доступне передзамовлення
Endress+Hauser Виробник: Endress+Hauser
Дивитись всі моделі
Без ПДВ: 0.00UAH
Передзамовлення

Ultrasonic sensor for level measurement for connection to FMU9x (measuring range up to 45m)

Field of application

The FDU95 ultrasonic sensor for continuous, non-contact and maintenance-free level measurement of powdery to coarse bulk materials. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in solids 45m (148ft).

Sensor for continuous, non-contact level measurement of bulk materials in silos, on belts, stockpiles and in crushers. Typically used in measurements in low structural heights.

  • Process connection: Thread

  • Temperature: -40 to +80°C or +150°C (-40 to +176°F or +302°F)

  • Pressure: +0.7 to +1.5bar (+10 to +22psi)

  • Maximum measuring range: Solids 45m (148ft)

  • Blocking distance: 0.7m / 80°C (2.3ft), 0.9m / 150°C (2.9ft)

  • International explosion protection certificates

Benefits

  • Integrated temperature sensor for Time-of-Flight correction. Accurate measurements are possible, even if temperature changes are present

  • Suited for rough ambient conditions thanks to separate installation from the transmitter (up to 300m)

  • Reduced build-up formation because of the self-cleaning effect

  • Integrated automatic sensor detection for transmitters FMU90/FMU95 for simple commissioning

  • Weather resistant and flood-proof (IP 68)

  • Non-contact measurement method minimizes service requirements

  • International Dust-Ex and Gas-Ex certificates available

Specifications

Measuring principle

Ultrasonic

Characteristic / Application

Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300 m in-between sensor and transmitter

Supply / Communication

4-wire (HART, Profibus DP)

Accuracy

+/- 2 mm + 0.17% of measured distance

Ambient temperature

-40 °C...80 °C
or 150 °C,
(-40 °F...176 °F
or 302 °F)


Process temperature

-40 °C...80 °C
or 150 °C,
(-40 °F...176 °F
or 302 °F)

Process pressure / max. overpressure limit

0.7 bar...1.5 bar abs
(10 psi...22 psi)

Main wetted parts

UP (unsaturated polyester)
Silicon / Al PTFE coated

Process connection

G / NPT 1"

Blocking distance

0.7 m / 80 °C,
(2.3 ft / 176 °F),
0.9 m / 150 °C,
(2.9 ft / 302 °F)

Max. measurement distance

45 m (148 ft)

Communication

Transmitter:
4...20 mA HART
Profibus DP

Certificates / Approvals

ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI, EAC Ex

Options

Second 4...20 mA output

Components

Transmitter:
FMU90, FMU95
