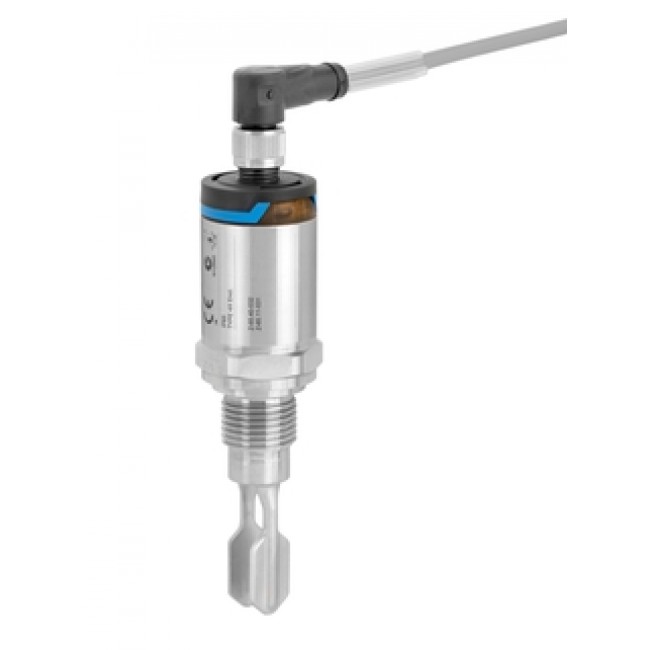

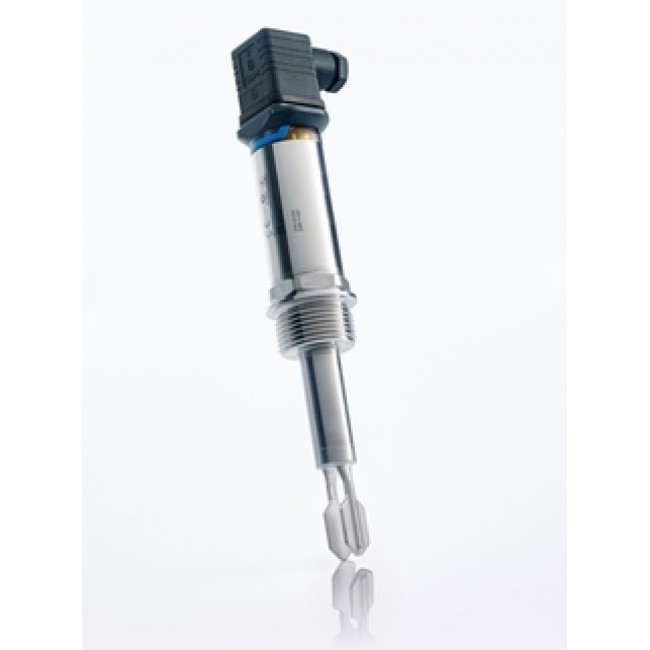

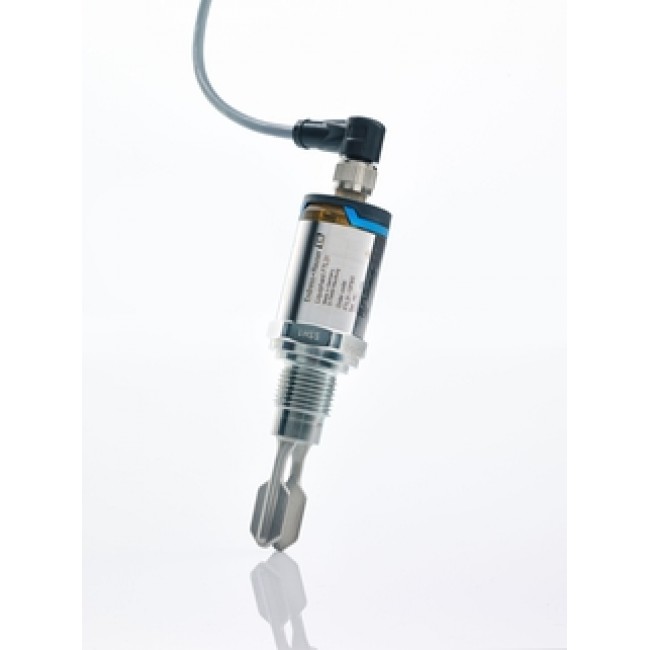

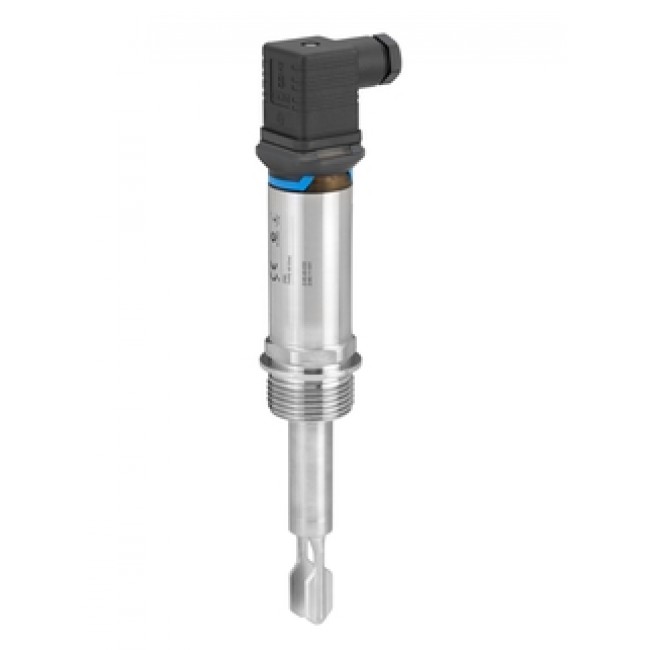

Вібраційний датчик граничного рівня Liquiphant FTL31, Endress+Hauser

Field of application

Liquiphant FTL31 is a point level switch for liquids. The FTL31 is designed for industrial applications in all industries, mainly the machinery industry. The Liquiphant is used for overfill protection or pump dry-run protection in cleaning systems. The IO-Link capability allows easy parameter setting.Compact:- Smallest vibronic sensor in the marketSafe:- Continuous self-monitoring-Reliable switching independent of media propertiesEasy:- No calibration - Plug & play- IO-Link connectivity

Point level switch in compact design with stainless steel housing.

• Process connections: Threads

• Temperature: -40 to +150°C (-40 to +302°F)

• Pressure: -1 to +40bar (-14.5 to 580psi)

• Surface roughness: 3.2µm

• Overfill protection and leakage detection WHG, marine approvals, final inspection report

Benefits

• Designed according to highest requirements to quality and environmental sustainability. The self-monitoring Liquiphant offers safe switching also in case of power supply loss.

• Independent of changing media properties an accurate switching point is offered. IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools

• A real plug & play sensor is offered without any need for adjustment even with changing media. Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles

• No calibration is required, no specific know-how or tools (e.g. software) necessary

• Robust design made of stainless steel (316L) assures highest durability

• A modular design offers different process temperatures and the widest variety of process connections and accessories in the market to fit every application

• No mechanically moved parts, free of maintenance
