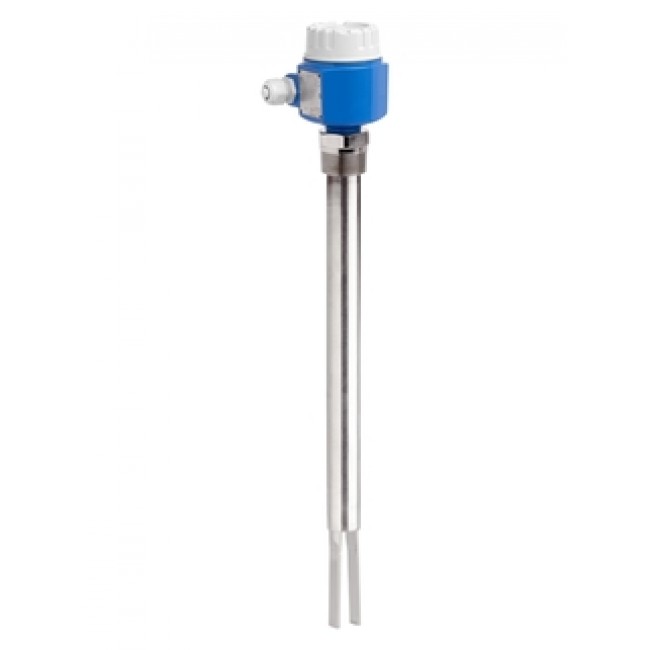

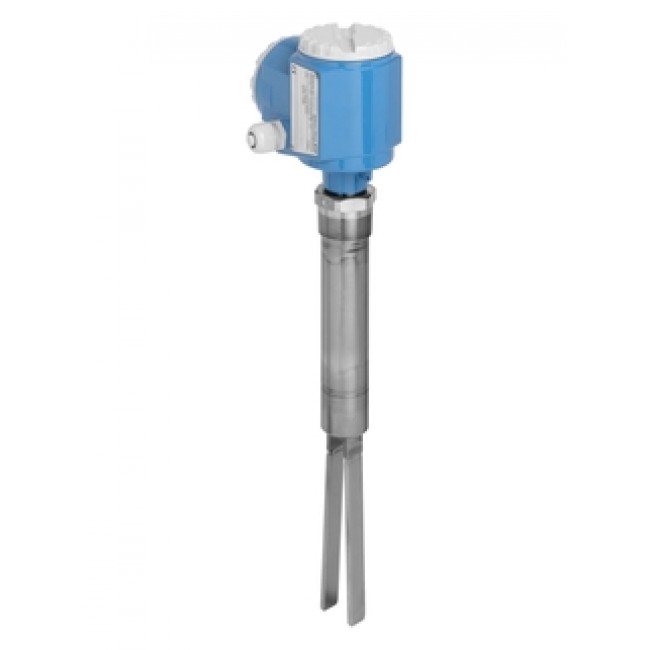

Вібраційний датчик граничного рівня Soliphant FTM51, Endress+Hauser

Field of application

Soliphant FTM51 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.

Point level switch for fine grained solids and powder.

• Process connections: Threads, flanges and hygienic connection (Tri-Clamp)

• Temperature: -50 to +280°C (-60 to +540°F)

• Pressure: -1 to +25bar (-14.5 to +360psi)

• Sensor length: 300mm to 4,000mm

• Sensor material: 316L (3,2µm, 0,8 µm, PTFE coated, ETFE coated)

• International explosion protection certificates

Benefits

• SIL2 in accordance with IEC 61508

• No mechanically moved parts, free of maintenance

• Measurement not affected by build-up or external vibration

• Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system

• Build-up and abrasion display selectable, density setting and switching delay selectable

• Choice of coated or polished sensor

• Build-up and corrosion detection
