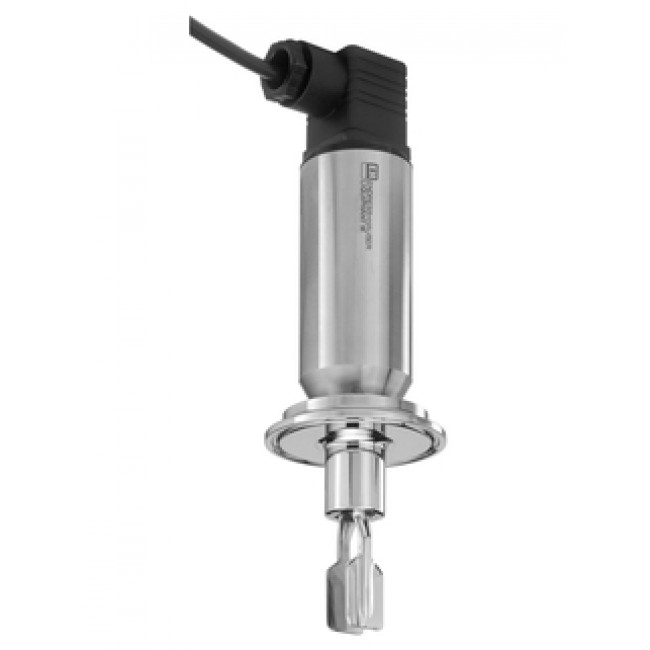

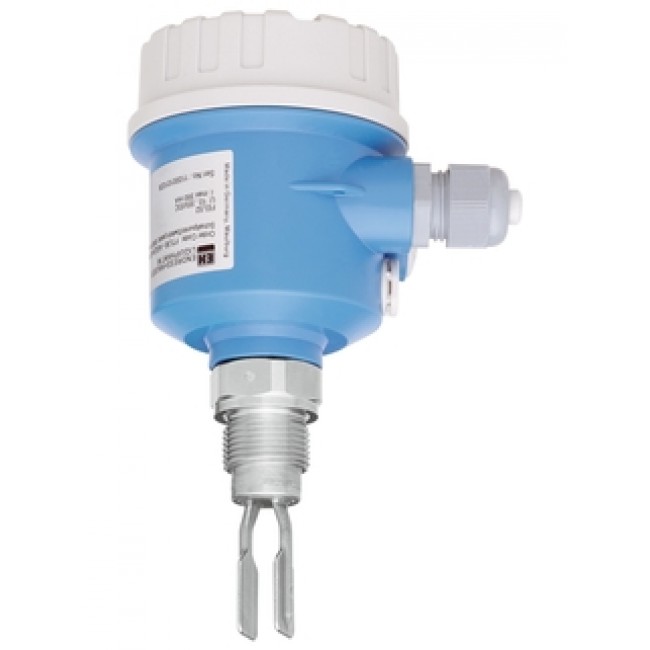

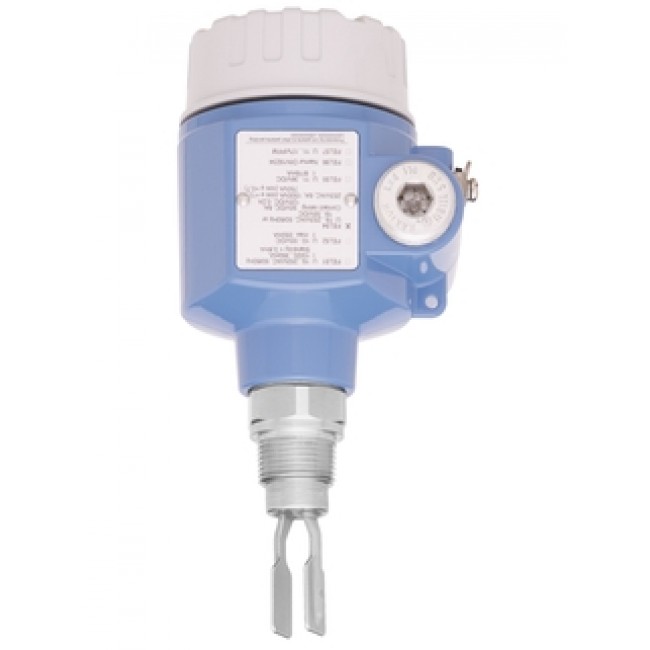

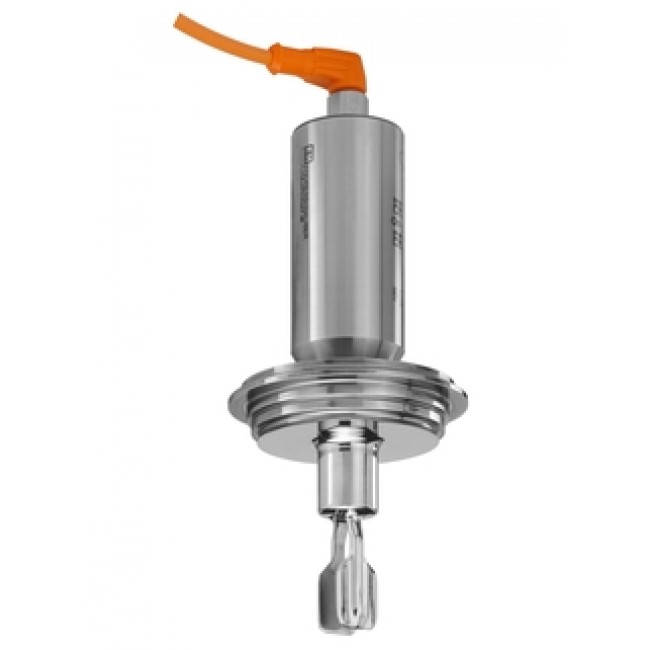

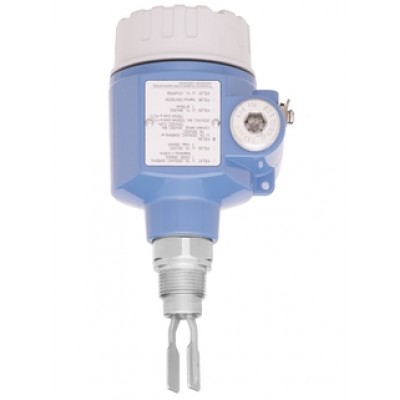

Вібраційний датчик граничного рівня Liquiphant FTL50, Endress+Hauser

Field of application

Liquiphant FTL50 is a point level switch for use in hazardous areas with all international certificates. Useable in all industries. FTL50 offers functional safety SIL2/SIL3. With the second line of defense the highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

Point level switch for all liquids.

• Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)

• Temperature: -50 to +150°C (-58 to +302°F)

• Pressure: -1 to +64bar (-14.5 to +928psi)

• Sensor material: 316L, Alloy

• International explosion protection certificates, overfill protection WHG, SIL, marine approvals

Benefits

• Use in safety systems requiring functional safety to SIL2/SIL3 in accordance withIEC 61508/IEC 61511-1

• International explosion protection certificates and overfill protection certificate (WHG)

• No calibration required, easy to start up

• No mechanically moving parts: no maintenance, no wear, long operating life.Monitoring of fork for damage: guaranteed function

• Second line of defense to protect the environment

• Variety of standardized process connections for all applications

• Stainless steel (316L) and high-corrosion resistant sensor material (Alloy)
