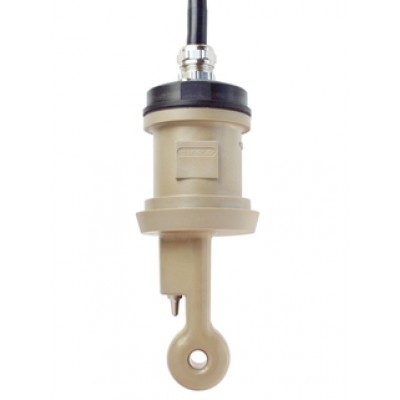

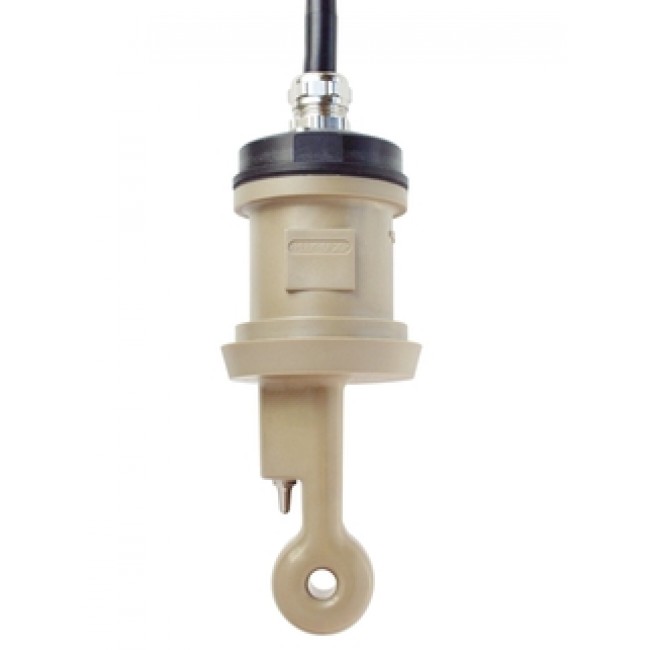

Аналоговий датчик провідності Indumax CLS52, Endress+Hauser

Аналоговий датчик провідності Indumax CLS52, Endress+Hauser
Попереднє замовлення
Доступне передзамовлення
Endress+Hauser Виробник: Endress+Hauser
Дивитись всі моделі
Без ПДВ: 0.00UAH
Передзамовлення

Inductive conductivity sensor for applications with fast temperature changes

Field of application

The Indumax CLS52 inductive conductivity sensor is equipped with a stainless steel temperature sensor that gives you an ultrafast temperature response to measure exactly in separation applications.

Indumax CLS52 is suited to applications such as:

  • Alkaline/acid concentration control in remaking

  • Phase separation of product/water and product/product mixtures in pipe systems

Benefits

  • Engineered for quick temperature response

  • Low risk of soiling due to encapsulated sensor

  • Insensitive to polarization

Specifications

Measuring principle

Inductive

Application

Food, pharmaceuticals

Characteristic

Hygienic inductive measuring cell for conductivity measurements, concentration control, CIP-control, cleaning and phase separation.

Measurement range

0.1 to 2000 mS/cm

Measuring principle

Inductive conductivity measurement.

Design

Hygienic inductive conductivity cell with an outside temperature sensor for a faster temperature reading.

Material

Sensor: PEEK
Heat contact nut: stainless steel 1.4435
Sealing: Chemraz

Dimension

Coil: outside diameter: appr. 47 mm inside diameter: appr. 15 mm

Process temperature

Max. 125°C (short time up to 140°C)
max. 257°F (short time up to 284°F)

Process pressure

Max. 16 bar at 90 °C
(Max. 232 psi at 194 °F)

Temperature sensor

Integrated Pt100 in a heat contact nut

Ex certification

ATEX

Connection

Process connections: dairy fitting, Clamp, thread 1,5", Varivent, APV, Perlick, SMS cable: fixed cable connection.

Ingress protection

IP67

Additional certifications

Calibration certification.
