Designed to promote versatility and materials compatibility
Field of application

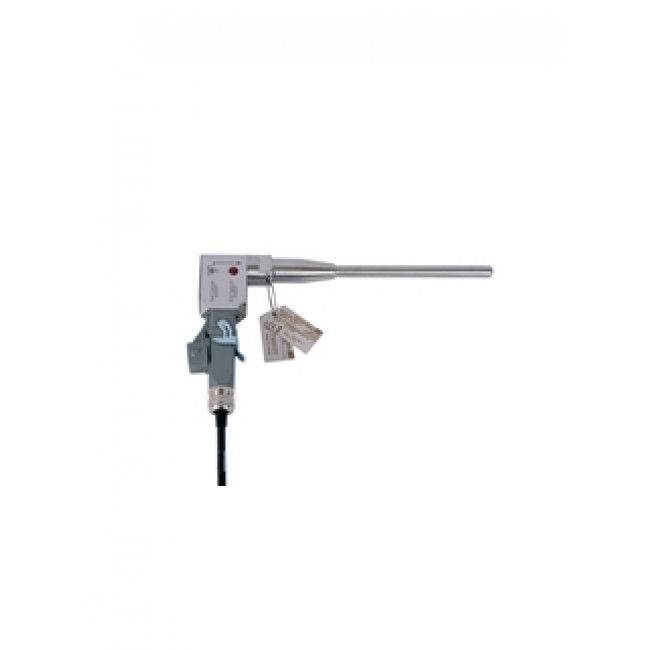

The Raman Rxn-40 probe is a sealed immersion probe for in situ Raman spectroscopy of liquid-phase samples in a laboratory or process plant setting. The process connection for the Raman Rxn-40 can be swaged, compression-mounted, flange-mounted, or installed in an Endress+Hauser flow cell, and is NeSSI compatible. These versatile options allow for direct insertion in slip-streams, drain-values, reactors, circulation loops, blend headers, and inlet or outlet pipework.
Chemical: reaction monitoring, blending, catalysis, feed and final product monitoring
Pharmaceutical: API reaction monitoring, crystallization, polymorph, blending
Benefits
Customizable to your process
Robust design with a range of process connections
In situ/no transfer lines or fast-loops required
Faster, simpler installation
Support for a range of chemical processes and corrosivity requirements
Ensures safety and meets regulatory requirements
Suitable for hazardous/classified environments
Specifications
Measuring principle
Raman spectroscopy
Spectral coverage
Probe spectral coverage is limited by the coverage of the analyzer being used.
Temperature
Temperature, Rxn-40 probe: -30 to 150 °C / -22 to 302 °F
Maximum laser power into probehead (mW)
< 499
Sample interface
Temperature, Rxn-40 mini configuration: -30 to 120 °C / -22 to 248 °F (316L stainless steel) -30 to 150 °C / -22 to 302 °F (C276 alloy) -30 to 150 °C / -22 to 302 °F (Grade 2 Titanium) Temperature ramp: ≤ 30 °C/min ≤ 54 °F/min Temperature, Rxn-40: -30 to 120 °C / -22 to 248 °F (316L stainless steel) -30 to 280 °C / -22 to 536 °F (C276 alloy) -30 to 315 °C / -22 to 599 °F (Grade 2 Titanium) Temperature ramp: ≤ 30 °C/min ≤ 54 °F/min Flange: ASME B16.5 and DIN EN1092 Type B flanges available upon request Relative humidity: up to 95%, non-condensing
Pressure
Min pressure: Full vacuum (0 bara) but not ultrahigh vacuum (UHV) where outgassing maybe a concern Max pressure, Rxn-40 mini configuration: 157.1 barg/ 2279 psig (316L stainless steel) 199.3 barg/ 2890 psig (C276 alloy) 153.6 barg/ 2228 psig (Grade 2 titanium) Max pressure, 1/2 inch Rxn-40: 142.4 barg/ 2066 psig (316L stainless steel) 158.1 barg/ 2293 psig (C276 alloy) 65.2 barg/ 946 psig (Grade 2 titanium) Max pressure, 3/4 and 1 inch Rxn-40: 169.5 barg/ 2458 psig (316L stainless steel) 182.8 barg/ 2651 psig (C276 alloy) 72.2 barg/ 1047 psig (Grade 2 titanium)
