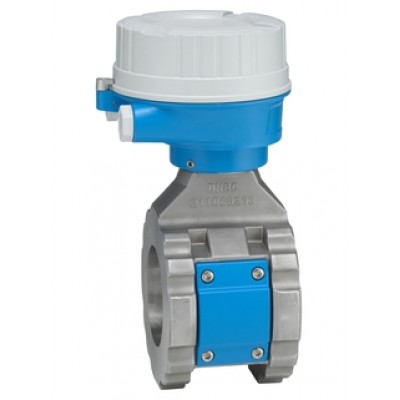

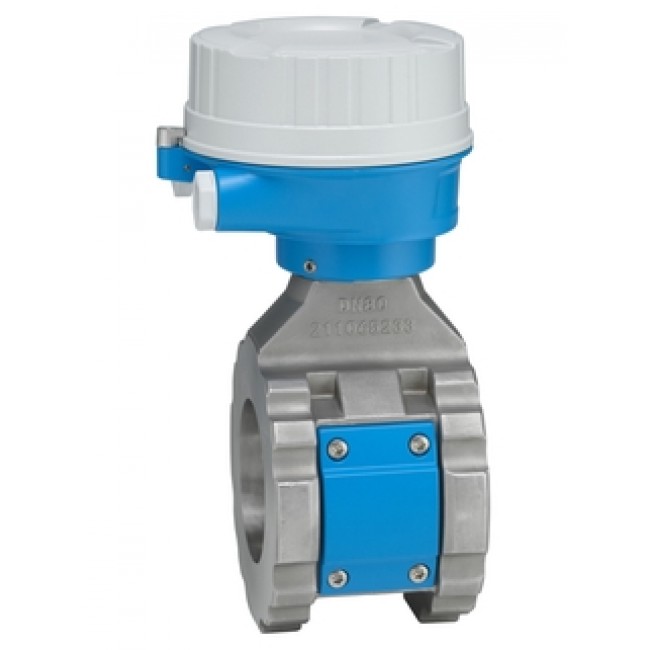

Proline Teqwave MW 500 - вимірювач загального вмісту твердих речовин, Endress+Hauser

Попереднє замовлення

Доступне передзамовлення

Виробник: Endress+Hauser

Дивитись всі моделі

Без ПДВ: 0.00UAH

Передзамовлення

Опис

Inline measuring device for total solids measurement in wastewater sludge as remote version with up to 4 I/Os

Field of application

The inline measuring device Teqwave MW 500 enhances sludge treatment in wastewater treatment plants through real-time total solids measurement using microwave transmission. This allows quicker, more efficient process optimization and fewer lab measurements. Continuous data availability improves solid-liquid separation, boosts operational safety, and enables swift response to process changes. Typical applications in sludge treatment include clarification, digestion, and dewatering.

The remote transmitter version Proline 500 allows for maximum installation flexibility in challenging environments. Equipped with a built-in web server and optional integrated WLAN, it simplifies operation and provides additional process and device information.

Benefits

Reliable, real-time measuring performance – permanent in-line measurement with excellent repeatability
Less maintenance – polished measuring tube reduces build-up formation and extends cleaning intervals
Reduced effort in programming – onboard load rate calculation available in combination with a flowmeter
Fewer process measuring points – multivariable measurement (total solids, temperature, conductivity)
Easy installation – innovative sensor construction and state-of-the-art technology with web server (optional WLAN)
Full access to process and diagnostic information – numerous freely combinable I/Os available
Integrated verification – Heartbeat Technology enables documented device functionality without process interruption

Specifications

Measuring principle	Total solids measurement via microwave transmission
Product headline	Total solids measurement for the water and wastewater industry, remote version with up to 4 I/Os. Ideal for total solids measurement, e.g. for sludge treatment in water/waste water treatment plants.
Sensor features	Polished tube – less maintenance due to reduced adhesion. Fewer process measuring points – multivariable measurement (total solids, temperature, conductivity). Easy installation – proven sensor construction. Repeatability (0.02%). Short installation length. Measuring up to 50% total solids content.
Transmitter features	Full access to process and diagnostic information – numerous, freely combinable I/Os. Onboard load calculation – less effort needed in programming. Integrated verification – Heartbeat Technology. Full access to process and diagnostic information – numerous, freely combinable I/Os. Onboard load calculation – less effort needed in programming. Integrated verification – Heartbeat Technology.
Nominal diameter range	DN 50 to 300
Installation	Inline installation
Material	Measuring tube: Stainless steel 1.4408 according to DIN EN 10213, CF3M according to ASME A351) Temperature sensor: 1.4435 (316L)
Measurement range	0 to 500 g/l (0 to 31 lb/ft3), 0 to 50 %TS
Process pressure	PN 16, Class 150, 10K
Connection	Wafer
Ingress protection	IP66/67, Type 4X enclosure
Display/Operation	4-line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible
Output / communication	4-20mA HART, Modbus RS485
Power supply	AC 100 to 240 V / AC/DC 24 V
Product safety	CE Marking, UKCA Marking
Hazardous area approvals	ATEX, IECEx, CSA C/US
Material certificates	3.1 material
Metrological approvals and certificates	Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
