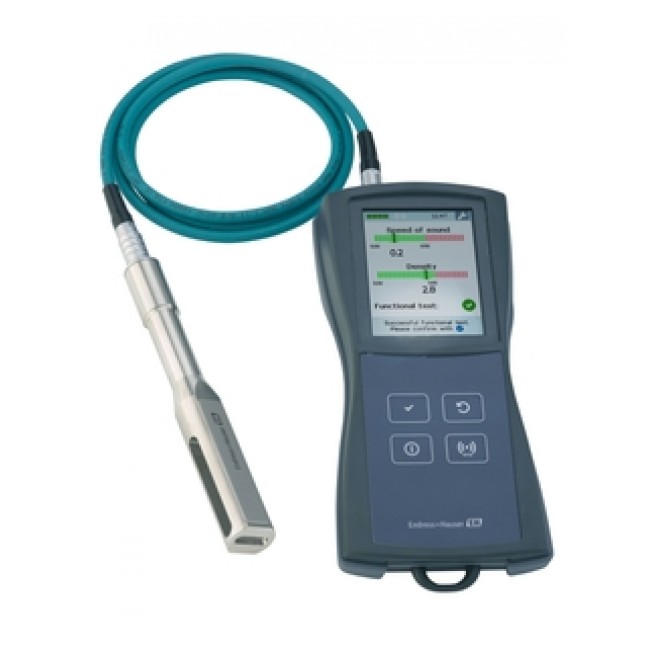

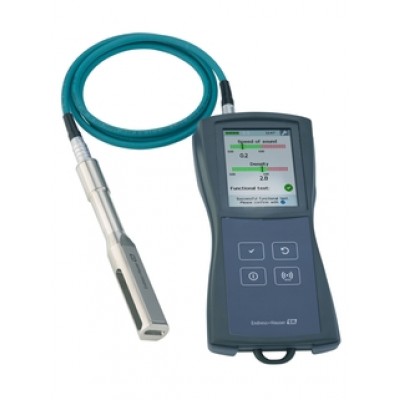

Teqwave T - Ультразвуковий концентратомір, Endress+Hauser

Попереднє замовлення

Доступне передзамовлення

Виробник: Endress+Hauser

Дивитись всі моделі

Без ПДВ: 0.00UAH

Передзамовлення

Опис

Smart, mobile measuring device – individually for your process

Field of application

The portable Teqwave T offers the most flexible application possibilities for temporary in situ liquid analysis in your plant or laboratory. With just one device, you can monitor concentration values at various measuring points and thus maximize your product quality at minimum operational expenditure. The mobile transmitter with its pre-configured measuring points allows you to use Teqwave T perfectly matched to your production needs.

The acoustic waveguide measures precisely and reliably, even the smallest changes are detected
Temporary concentration measurement of liquids at various measuring points in plant & laboratory
Insertion length: 180 mm (7 in)
Accurate and independent of flow profile
Robust, portable transmitter with Li-ion battery 2300 mAh
Large color display with 4 operating keys
Integrated data storage for max. 3000 measured values

Benefits

Easy, fast and efficient – real-time in situ liquid analysis
Versatile applications – one device for changing tasks
Highest process safety – reliable metering due to robust, maintenance-free sensor
Cost-saving – surveillance of product quality without sampling
Customized usage – innovative application concept, expendable for changing measuring tasks
Fast, straightforward operation without metrology knowledge – pre-configured measuring points
Efficient plant monitoring – up to 8 hours of mobile operation without external power supply

Specifications

Measuring principle	Ultrasonic concentration
Product headline	Smart, mobile measuring device – individually for your process. Easy, fast and efficient – real-time in situ liquid analysis. Temporary concentration measurement of liquids at various measuring points in plant and laboratory.
Sensor features	Versatile applications – one device for changing tasks. Highest process safety – reliable metering due to robust, maintenance-free sensor. Cost-saving – surveillance of product quality without sampling. Insertion length: 180 mm (7 in). Accurate and independent of flow profile.
Transmitter features	Customized usage – innovative application concept, expendable for changing measuring tasks. Fast, straightforward operation without metrology knowledge – pre-configured measuring points. Efficient plant monitoring – up to 8 hours of mobile operation without external power supply. Robust, portable transmitter with Li-ion battery 2300 mAh. Large color display with 4 operating keys. Integrated data storage for max. 3000 measured values.
Nominal diameter range	Insertion length: 180 mm (7")
Measured variables	Concentration Temperature Sound velocity
Max. measurement error	Density: ±0.01g/cm³ Temperature: ±0.5K Sound velocity: 2m/s
Measurement range	Concentration According to concentration app data sheet, maximum 0 to 100 % Sound velocity 600 to 2000 m/s Temperature concentration app data sheet, maximum 0 to +100 °C (32 to +212 °F) Density 0.7 to 1.5 g/cm³
Design	Portable
Material	Sensor housing material: Stainless steel V4A 1.4571
Process temperature	0 to 100 °C (32 to 212 °F)
Ex certification	Non-hazardous area UK; Non-hazardous area
Ingress protection	Sensor: IP68 (with cable plugged in), IP66 (without cable connector) Transmitter: IP65
Display/Operation	3.5" TFT display with 4 operating keys
Power supply	Lithium-ion battery (2300 mAh capacity)
Product safety	CE, C-Tick
