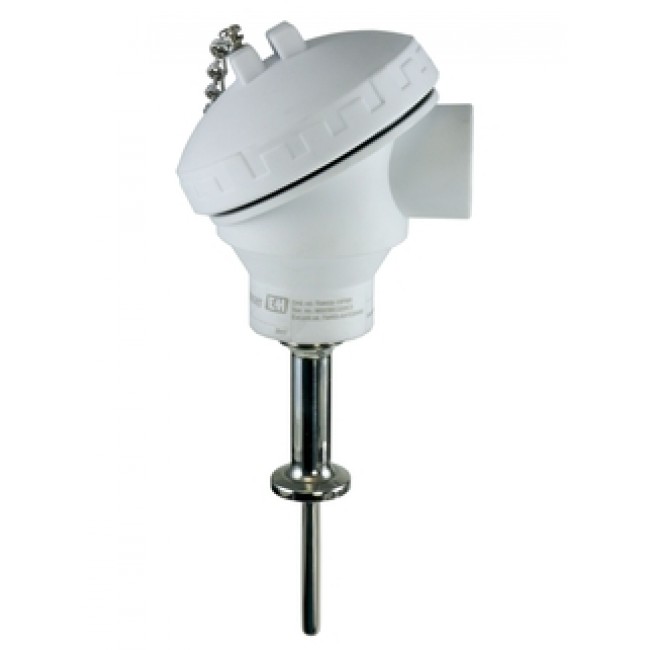

iTHERM TM402 Гігієнічний термометр, американське виконання, Endress+Hauser

iTHERM TM402 Гігієнічний термометр, американське виконання, Endress+Hauser
Попереднє замовлення
Доступне передзамовлення
Endress+Hauser Виробник: Endress+Hauser
Дивитись всі моделі
Без ПДВ: 0.00UAH
Передзамовлення

For standard hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

Field of application

This iTHERM thermometer has been designed to meet the basic requirements of the Food & Beverages and Life Sciences industries at the best price. It offers a variety of versions within a clearly segmented standard product. The result: Time and cost savings by simple and fast product selection. The device uses basic technology with features such as a fixed, non-replaceable insert, a wide range of process connections and international certification at an excellent value for money.

  • Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

  • Measuring range: –50 to +200 °C (–8 to +392 °F)

  • Pressure range up to 40 bar (580 psi)

  • Protection class: up to IP69K

  • Can be used in non-hazardous areas

Benefits

  • Excellent value for money and fast delivery

  • User-friendly and reliable from product selection to maintenance

  • International certification: hygiene standards as per 3-A® , EHEDG, ASME BPE, FDA, TSE Certificate of Suitability

  • Wide range of process connections

Specifications

Measuring principle

Resistance Temperature Detector

Characteristic / Application

imperial style
hygienic applications
aseptic applications
hygienic process connections
with neck


Thermowell / protection tube

without (direct immersion)

Insert / probe

without exchangeable insert

Outer diameter protection tube / Insert

1/4'' (6,35 mm)
3/8'' (9,53 mm)

Max. immersion length on request

up to 15.5" (317,5mm)
others on request

Material protection tube/ thermowell

316L

Process connection

Triclamp
Clamp-connections according to ISO2852
G3/4" Liquiphant
G1" Liquiphant
Varivent

Tip shape

straight
reduced

Surface roughness Ra

30 μin (0,76 μm)
15 μin (0,38 μm)

Operating temperature range

PT100:
-50 °C … 200 °C
(-58 °F … 392 °F)

Max. process pressure (static)

at 20 °C: 40 bar (580 psi)

Accuracy

class A acc. to IEC 60751

Response time

depending on configuration

Integration head transmitter

yes (4 ... 20 mA, HART)

Certification

SIL (transmitter only)
