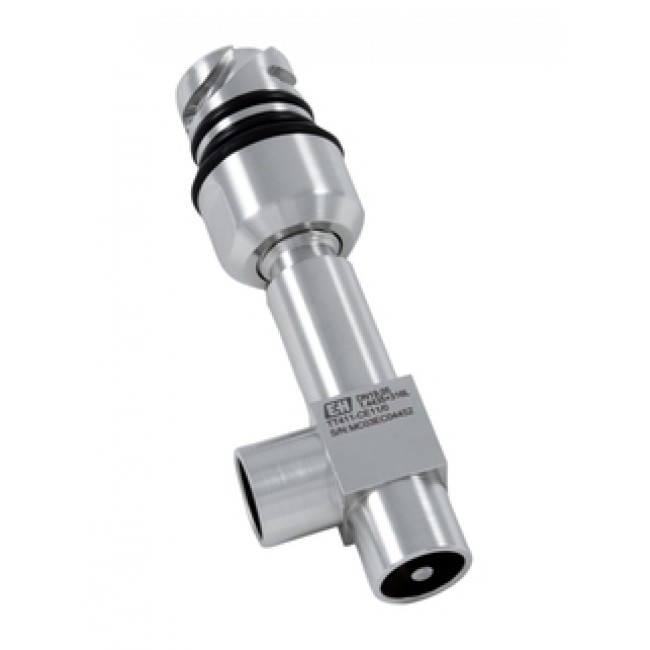

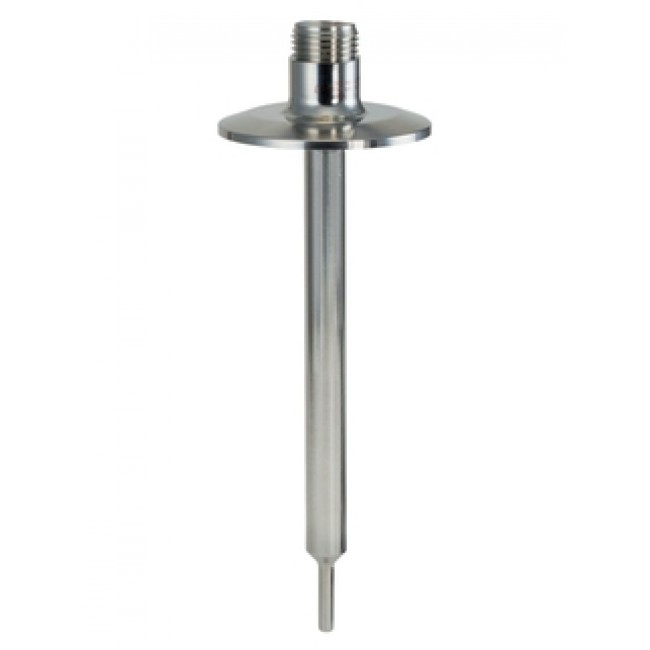

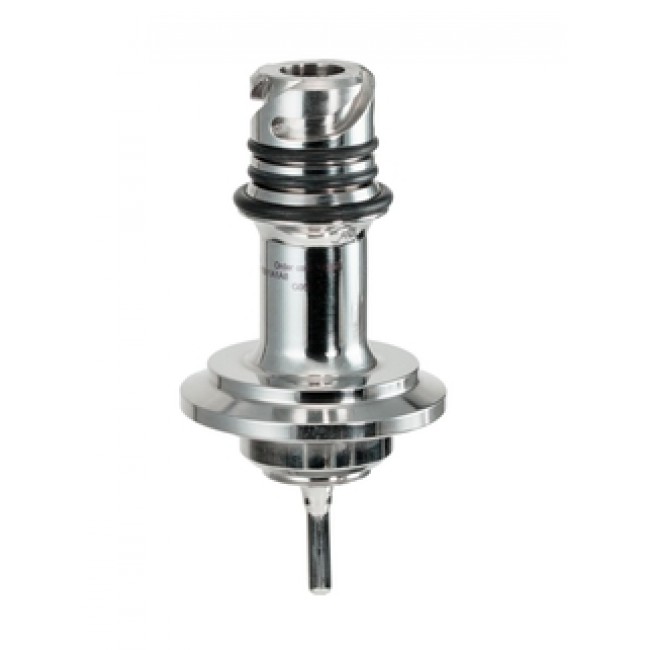

iTHERM ModuLine TT412 Зварна гільза, Endress+Hauser

Field of application

Best applicable for use in hygienic or aseptic pipes and containers or tanks even with very small immersion lengths. It meets increased protection requirements of the temperature sensor regarding physical and chemical effects. Ideally suited to all measuring points that require regular re-calibration by simply replacing the insert in closed processes.

Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

• Pressure range up to 40 bar (580 psi)

• For increased protection requirements of the temperature sensor regarding physical and chemical effects

• For use in pipes and containers or tanks

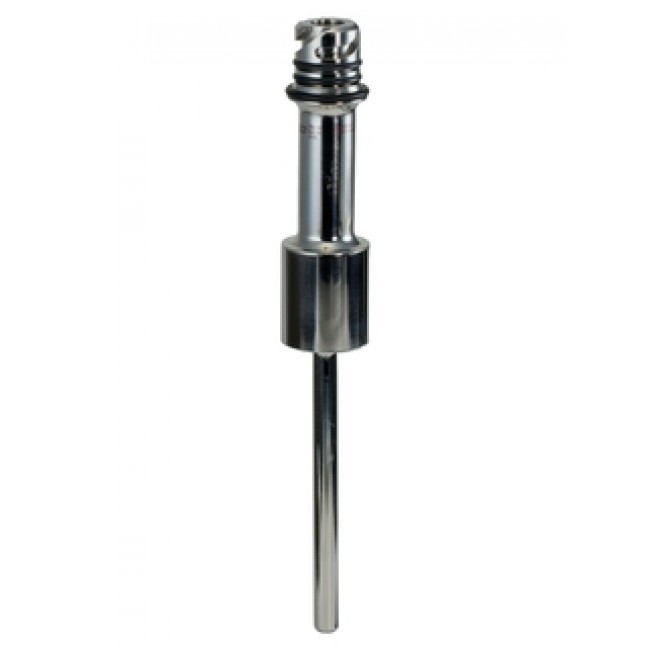

• Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes

Benefits

• iTHERM QuickNeck – cost and time savings thanks to simple, tool-free recalibration of the insert used

• All common hygienic process connections

• International certification: hygiene standards as per 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability

• Fast response time owing to reduced tips with thin walls

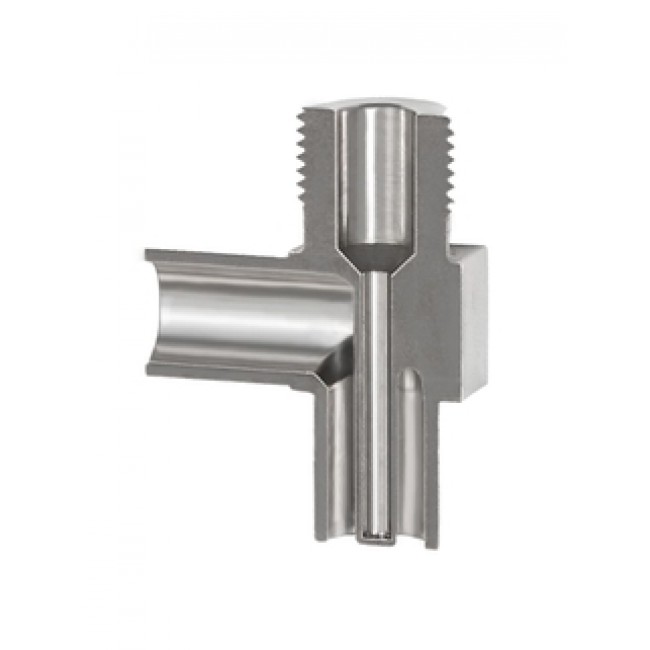

• State of the art Tee and Elbow elements, without welds and dead legs and with best in class hygienic design
